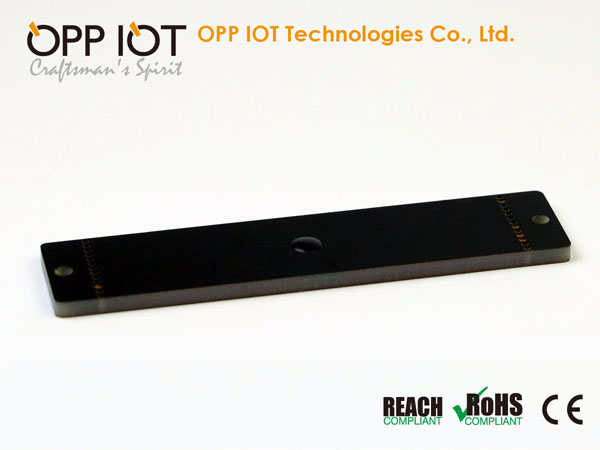

RFID tags OPP9020 with Alien Higgs-3 chip provide an excellent read range up to 10.8m
2018-9-5 View：
The RFID tags OPP9020 includes Alien Higgs-3 chip that delivers an excellent tag read performance. The product meets IP-68 waterproofing standards, allowing outdoor use without degraded performance. The Alien Higgs-3 chip has 96-bit EPC memory and 64-bit user memory, allowing users to encode additional information such as internal identification numbers to the tag.
OPP9020 measures 90x20x3.0mm, it complies with UHF RFID standard ISO18000-6C and EPC Global Gen2v2, and it supports the global UHF band from 865-928MHz. An excellent maximum read range of 10.8m is provided by the tag.
OPP9020 Functional Specifications:
RFID Protocol:EPC Class1 Gen2, ISO18000-6C
Frequency:US 902-928MHz, EU 865-868MHz
IC type:Alien Higgs-3
Memory:EPC 96bits (Up to 480bits) , USER 512bits, TID64bits
Write Cycles:100,000times
Functionality:Read/write
Data Retention:Up to 50 Years
Applicable Surface:Metal Surfaces
Read Range(On Metal):
(Fix Reader:ThingMagic M6-E, 36dBm/4W) Up to 10.8m - (US) 902-928MHz, on metal
Up to 10.5m - (EU) 865-868MHz, on metal
Read Range(On Metal):
(Handheld Reader:OP9908,R2000,33dBm/2W)
Up to 6.5m - (US) 902-928MHz, on metal
Up to 6.3m - (EU) 865-868MHz, on metal
Warranty:1 Year
OPP9020 Physical Specification:
Size:90x20mm, (Hole: D3mm)
Thickness:3.0mm
Material:FR4 (PCB)
Colour:Black (Red, Blue, Green, White)
Mounting Methods:Adhesive, Screw
Weight:12.0g
OPP9020 Enivironmenal Specification:
IP Rating:IP68Storage Temperature:-40°C to +150°C
Operation Temperature:-40°C to +100°C
Certifications:Reach Approved,RoHS Approved,CE Approved
