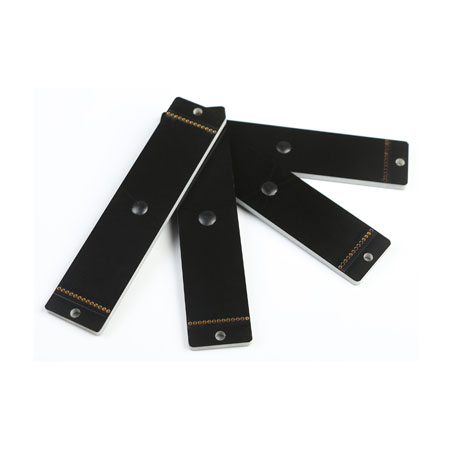

Anti metal long range RFID tags for sale PCB9020
- PCB9020 RFID tag for sale in OPP IOT, it is a 10.8 meters long range RFID tags and a good choice RFID tag for cars tracking and parking. It is IP 68-rated, making it suitable for harsh outdoor industrial environments as well as exposure to water and contaminants. When PCB9020 is installed on the cars, it provides a max read range of up to 10.8 meters. It is in size 90x20mm, Operating frequency of either 902-928 MHz (US) or 865-868 MHz (EU) and is based on the Alien Higgs-3 IC, which can be attached using high-performance adhesives, via a rivet hole, or using a cable tie.
| Physical Specification: |
| Size | 90x20mm, (Hole: D3mm) |
| Thickness | 3.0mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 12.0g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 10.8m - (US) 902-928 MHz, on metal |
| Up to 10.5m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 6.5m - (US) 902-928 MHz, on metal |
| Up to 6.3m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
