Home > products > PCB On metal RFID tags > Magnet mount On metal RFID Tags PCB9020m

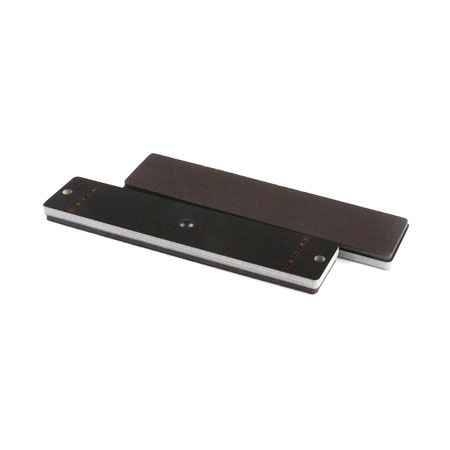

RFID Reusable tag PCB9020m can be adsorbed on metal by magnetic force
- According to the market need, OPP IOT presented RFID reusable tags PCB9020m with a 10.8 meters long reading range, which can be adsorbed on metal assets by magnetic force. PCB9020m is a magnetic rfid tag and can be easy moved from a metallic asset to another one, Therefore, PCB9020 is a very popular magnetic rfid tags in the RFID industry. We are rfid tag manufacturer directly, so the price of RFID Tags PCB9020m are favorable, And our RFID reusable tag PCB9020M has passed ROHS and CE certificate , ATEX Explosion-proof Certification,ISO9001 Quality Management System and ISO14001 Environmental Management standards.
| Physical Specification: |
| Size | 90x20mm, (Hole: D3mm) |
| Thickness | 5.0mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Magnet |
| Magnetic Field | ≥580 Gauss |
| Weight | 26.0g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 10.8m - (US) 902-928 MHz, on metal |
| Up to 10.5m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 6.5m - (US) 902-928 MHz, on metal |
| Up to 6.3m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -30 ～ +75℃ |
| Operation Temperature | -30 ～ +75℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
