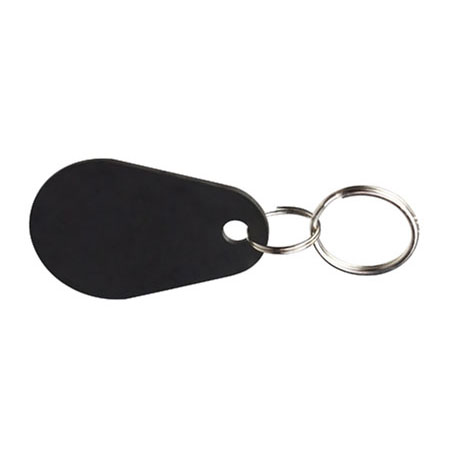

UHF RFID Smart KEY FOB PCB4529
-
PCB4529 is a RFID key fob specifically designed to provide extremely long read range up to 6.2 meters on non-metal surfaces. it is an excellent smart key fob solution for industrial applications, This UHF RFID smart keyfob are the ideal identification solution for personnel applications where the tag can be secured to a key chainis and widely used in door control, attendance control, identification, logistics, industrial automation, ticketing, casino tokens, membership, public transportation, electronic payment, swimming pools, and laundries.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | NXP UCODE 8 |
| Memory | EPC 128bits , USER 0bits, TID 96bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 years |
| Applicable Surface | Non Metal Surfaces |
Read Range: |
3.0m - (US) 902-928MHz, off metal, |
| Read Range: (Handheld Reader) |
2.0m - (US) 902-928MHz, off metal, |
| Warranty | 1 year |
| Physical Specification: |
| Size | 45.0x29.0mm, (Hole: D5.0 mm) |
| Thickness | 1.5mm |
| Material | PCB |
| Colour | Black |
| Mounting Methods | Metal ring |
| Weight | 3.0g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Storage Temperature | -40℃ to +150℃ |
| Operation Temperature | -40℃ to +100℃ |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
