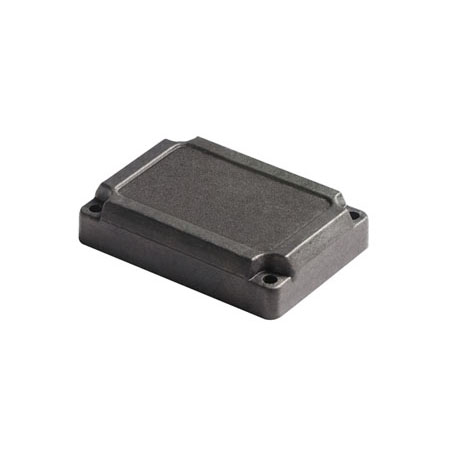

IP68/IP69K High Temperature and Acid Alkali Resistant Tag Devil3002
-
Devil3002 is a rfid in manufacturing tag specifically designed for application in high temperature, acid-base, silane, ultrasonic cleaning, electrophoresis, and other harsh environments. IP68/IP69K Devil3002 RFID tag has a size of 41x29mm, a thickness of 11.8mm, a weight of just 21g and a reading distance of up to 6.5 meters. It is commonly used in automotive production lines, industry equipment,automobile manufacturing,oil & gas & mining.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | NXP UCODE 8 |
| Memory | EPC 128bits , USER 0bits, TID 96bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 Years |
| Applicable Surface | Metal Surfaces |
Read Range(On Metal) :(Fix Reader) |
6.5m , US ( 902-928MHZ ) |
Read Range(On Metal) :(Handheld Reader) |
3.5m , US ( 902-928MHZ ) |
| Warranty | 250°С 1 Year / 260°С 6 month |
| Physical Specification: |
| Size | 41.0x29.0mm, Hole: D2.6mmx4 |
| Thickness | 11.8mm |
| Material | PEEK |
| Colour | Black |
| Mounting Methods | Screw - Socket head cap screw(M2) |
| Weight | 19g |
| Enivironmenal Specification: |
| IP Rating | IP68, IP69K |
| Storage Temperature | -60°С to +250°С |
| Operation Temperature | -40°C to +150°C |
| Withstand PH | PH0 to PH14,and all other liquid that PEEK can handle with |
| Reliability testing terms and results | 1. Heating in oven at 250°С for 4 hours; 2. Soaking in water 2 meters depth for 8 hours immediately; 3. Cleaning with ultrasonic at 70°C for 90 minutes; 4. 200Kpa pressure test for 2 hours under the high temperature and high humidity; After running 30 circles the above steps ,the tags with no damage. |
| Compression strength | 150Mpa |
| Certifications | Reach, RoHs, CE |
