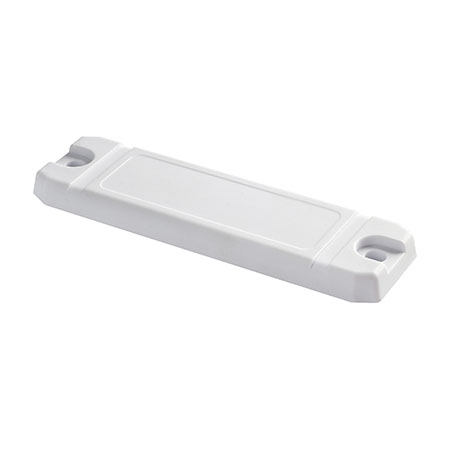

Long reading range up to 11 meters Super Magnetic RFID on-metal tag OPP105M

OPP105M are a reusable RFID tags with integrated magnets designed for industrial applications where tags need to be frequently moved between metallic assets. Compliant with the EPC Class 1 Gen 2 RFID standard, OPP105M Magnetic On-Metal RFID Tag utilizes the NXP Technology UCODE 8 chip, providing a read range of up to 11 meters. Encased in durable ABS+PC, measuring 105x30x7.5 millimeters, this magnet-mount RFID tag is ideal for reliably tracking work-in-process parts and returnable transport items in harsh industrial and outdoor environments.

Functional Specifications:

RFID Protocol	EPC Class1 Gen2, ISO18000-6C
Frequency	US 902-928MHz, EU 865-868MHz
IC type	NXP UCODE 8
Memory	EPC 128bits , USER 0bits, TID 96bits
Write Cycles	100,000times
Functionality	Read/write
Data Retention	Up to 50 Years
Applicable Surface	Metal Surfaces
Read Range(On Metal) : (Fix Reader)	Up to 11.0m - (US) 902-928MHz, on metal Up to 10.0m - (US) 865-868MHz, on metal
Read Range(On Metal) : (Handheld Reader)	Up to 5.5m - (US) 902-928MHz, on metal Up to 5.0m - (US) 865-868MHz, on metal
Warranty	1 Year

Physical Specification:

Enivironmenal Specification:

IP Rating	IP68
Storage Temperature	-40°C to +70°C
Operation Temperature	-25°C to +70°C
Certifications	Reach Approved,RoHS Approved,CE Approved
