Home > products > 13.56MHz HF RFID Tag PCB4921

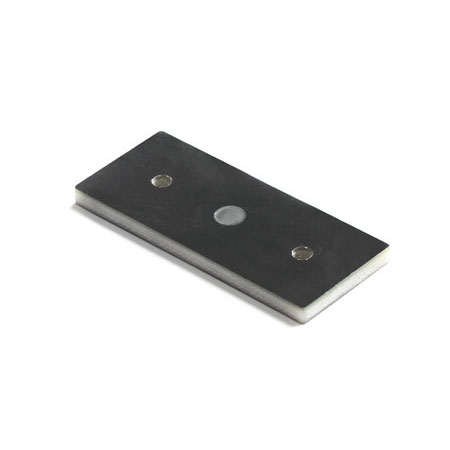

13.56MHz high frequency RFID Tag PCB4921
-
PCB4921 is a rfid tracking stickers, which is compliant with ISO standards (ISO 14443 and ISO 15693 tags). The ISO14443 standard has a short identification distance but low price and good security. So HF RFID tags PCB4921 is a good choice for various applications including asset tracking, factory automations, automotive, security purpose, Near field communication (NFC), laundry management, waste management and so on.
| Functional Specifications: |
| RFID Protocol | ISO-18000-3,ISO 15693 |
| Frequency | 13.56MHz |
| IC type | NXP I CODE-SLI-X |
| Memory | Total 1024Bits,32Blocks,32bits per Block,UID64bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 years |
| Applicable Surface | Metal / Non-metal surface |
Read Range: |
8cm, on metal |
| Warranty | 1 year |
| Physical Specification: |
| Size | 49.0x21.0mm, (Hole: D3mmx2) |
| Thickness | 3.0mm |
| Material | FR4(PCB) |
| Colour | Black (Red, Blue, Green, White) |
| Mounting Methods | Adhesive, Screw |
| Weight | 6.5g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Storage Temperature | -40℃ to +150℃ |
| Operation Temperature | -40℃ to +100℃ |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
