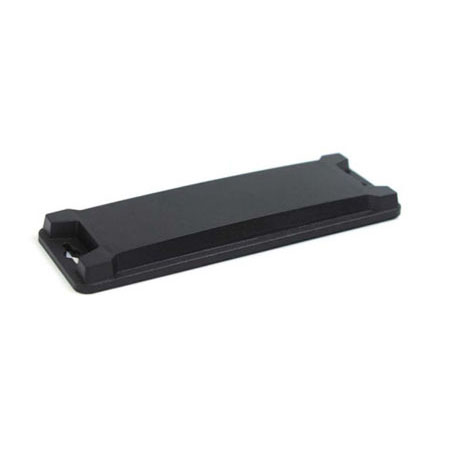

Long reading range up to 30 meters - UHF RFID tag OPP130
-
OPP130 UHF RFID tag has an operating frequency of either 902-928 MHz (US) or 865-868 MHz (EU) and is based on the Alien Higgs-3 IC, which provides industry-leading performance and up to a 30 meters long read range. The OPP130 UHF RFID tag is IP68-rated, making it suitable for harsh outdoor environments as well as exposure to water and contaminants. Long range RFID OPP130 has an operating temperature range of -20°C to +80°C), and can be attached using high-performance adhesives, via a rivet hole, or using a cable tie.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) : (Fix Reader) |
Up to 30.0m - (EU) 865-868MHz, on metal ; Up to 28.0m - (US) 902-928MHz, on metal Up to 16.0m - (EU) 865-868MHz, off metal ; Up to 14.0m - (US 902-928MHz, off metal |
| Read Range(On Metal) : (Handheld Reader) |
Up to 22.0m - (EU) 865-868MHz, on metal ; Up to 22.0m - (US) 902-928MHz, on metal Up to 11.0m - (EU) 865-868MHz, off metal ; Up to 11.0m - (US) 902-928MHz, off metal |
| Warranty | 1 Year |
| Physical Specification: |
| Size | 130x42mm, (Hole: 2 hole) |
| Thickness | 10.5mm |
| Material | PC |
| Colour | Black (Red, Blue, Green, White) |
| Mounting Methods | Adhesive, Screw |
| Weight | 38.0g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Storage Temperature | -30°C to +100°C |
| Operation Temperature | -20°C to +80°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
OPP IOT offers a wide range of UHF tags available in several designs and depending on the type of application. The company chooses and offers the type of TAGS that best fit the intended use, the application and tracking mode as well as the characteristics of the work environment, thus ensuring each Customer with the best price/performance for the specific context.
Thanks to its specific Design Department, Our company provides custom solutions that can suit very specific requirements, providing the best solution, in terms of detection as a result of contact with an extremely wide variety of materials.OPP IOT therefore offers UHF RFID TAGS that are customised in shape, size and finish so as to ensure application to any product, even in the most adverse environmental conditions.
Key tags : UHF RFID ，long range RFID, on metal RFID tags , UHF RFID tags , industrial RFID tags
