UHF RFID tags PCB9525 for asset tracking

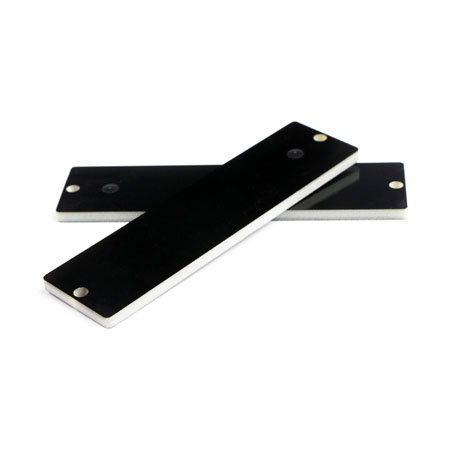

- PCB9525 is a UHF RFID tags, which can be mounted with adhesive and screw, especially onto metal surface for assets tracking. The RFID UHF tag PCB9525 is able to operate under high temperature up to 100°С and low as -40°С, on shelf it can assist wet environment as well as water and dust proof. When PCB9525 RFID for tracking and management of those medical and manufactory assets, only if they are within the reading range of a certain RFID reader, RFID tracking system can automatically and accurately collect data, and this information can be such information as name of the manufacturer, manufacturing date, warranty time and even the technical parameter, and etc.
| Physical Specification: |
| Size | 95x25mm, (Hole: D3.5mm) |
| Thickness | 3.55mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 18.0g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3, Impinj Monza 4QT |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 9.5m - (US) 902-928 MHz, on metal |
| Up to 9.6m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 5.8m - (US) 902-928 MHz, on metal |
| Up to 4.3m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
