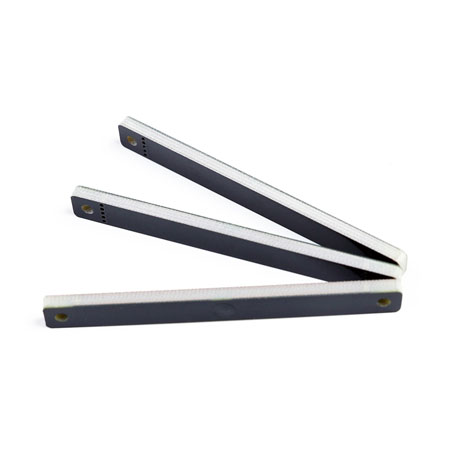

Fixed asset tags PCB8008 for trucks tracking
- PCB8008 can used as a fixed asset tags that is permanently affixed to equipment that serves to identify it for tracking, inventory, and accountability purposes. PCB8008 fixed asset tag is compliant with EPC Class 1 Gen 2 (ISO 18000-6C) standards and offers superior read range capability at a cost effective price. You can use this rfid tag for trucks tracking, PCB8008 uhf tag also can be used for applications like manufacturing, supply chain, automotive,outdoor & industrial operations,logistics, warehousing, IT and financial services where cost and versatility is at a premium.
| Physical Specification: |
| Size | 80x8mm, (Hole: D3mm) |
| Thickness | 3.5mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 5.0g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | US 902-928MHz, EU 865-868MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 6.5m - (US) 902-928 MHz, on metal |
| Up to 5.9m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 3.4m - (US) 902-928 MHz, on metal |
| Up to 3.1m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
