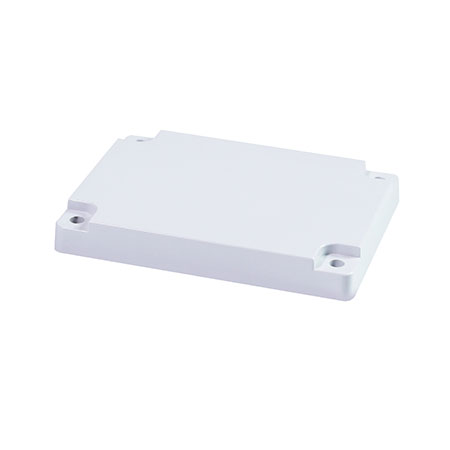

Dual Frequency RFID Tag (HF+UHF) OPP8160dual

The OPP8160DUAL is a dual frequency RFID tag that integrates both HF and UHF technologies in a single solution. Designed for mounting on metallic surfaces, it offers the versatility of dual-frequency operation—HF for applications requiring secure, short-range data exchange such as access control or NFC interaction, and UHF for long-range asset tracking and inventory management. By combining both frequencies, the OPP8160DUAL reduces the need for multiple tags, streamlines operations, and enhances data flexibility across various industrial, logistics, and identification scenarios.

Functional Specifications:

RFID Protocol	ISO/IEC 15693 & 18000-3 ; ISO/EPC Gen2v2 & IEC 18000-63
Frequency	US902-928MHZ, EU(865-868MHZ);13.56MHZ
IC type	EM4425
Memory	64-bit UID (HF),HF USER memory: Up to 480-bit EPC/UII encodings; 96-bit TID (UHF),UHF USER memory:Optional Digital Signature (none, 256b, 384b, 512b); 1-step tag encoding possible from either HF or UHF interface.
Write Cycles	100,000times
Functionality	Read/write
Data Retention	Up to 50 Years
Applicable Surface	Metal Surfaces
Read Range(On Metal) : (Fix Reader)	Up to 5.4m, US ( 902-928MHZ ), On metal Up to 6.3m, EU ( 865-868MHZ ), On metal
Read Range(On Metal) : (Handheld Reader)	UHF 2.7m, US ( 902-928MHZ ), On metal UHF 3.1m, EU ( 865-868MHZ ), On metal
Read Range : (HF Desktop Reader)	6.0cm, Metal Surfaces
Read Range : (NFC mobile phone)	1.5cm, Metal Surfaces
Warranty	1 Year

Physical Specification:

Enivironmenal Specification:

IP Rating	IP68
Storage Temperature	-30°C to +70°C
Operation Temperature	-30°C to +70°C
Certifications	Reach Approved,RoHS Approved,CE Approved
