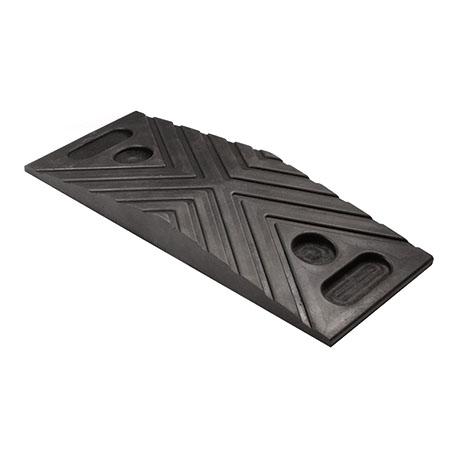

Embedded rfid chip Rubber pressure resistant tag OPP3200

OPP3200 is a embedded rfid chip rubber tag, it can application on the floor and mark a location in a warehouse or distribution facility to aid in automatic data collection and inventory control. The tag is 320x125x30.5mm in size and flat enough for floors, walls and similar surfaces. OPP3200 RFID tag is perfect for both indoor and outdoor applications as it resists to atmospheric agents (humidity, rain, UV rays, sunlight, chemical substances, dust etc.) and to mechanical solicitations (trampling, abrasion).

Functional Specifications:

RFID Protocol	EPC Class1 Gen2, ISO18000-6C
Frequency	US 902-928MHz, EU 865-868MHz
IC type	Impinj Monza R6-P
Memory	EPC 128bits , USER 32bits, TID 96bits
Write Cycles	100,000times
Functionality	Read/write
Data Retention	Up to 50 Years
Applicable Surface	Metal Surfaces
Read Range(On Metal) : (Fix Reader)	Up to 3.2m - (US) 902-928MHz, on metal Up to 6.5m - (US) 865-868MHz, on metal
Read Range(On Metal) : (Handheld Reader)	Up to 1.5m - (US) 902-928MHz, on metal Up to 3.0m - (US) 865-868MHz, on metal
Warranty	1 Year

Physical Specification:

Enivironmenal Specification:

IP Rating	IP68
Storage Temperature	-40°C to +85°C
Operation Temperature	-40°C to +85°C
Certifications	Reach Approved,RoHS Approved,CE Approved
