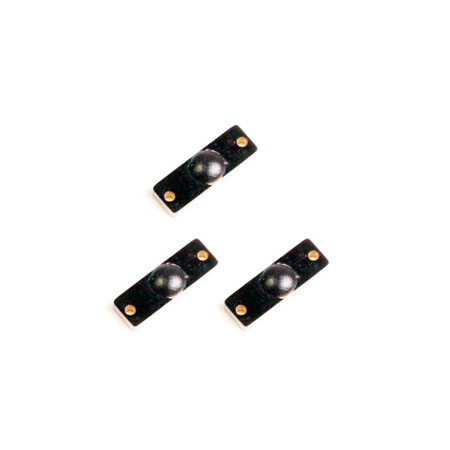

PCB1204 RFID tag for metal objects in retail
-
PCB1204 are designed on PCB/FR-4 base material, solving the problem that RFID tags can’t work well on metal objects. It operates on 860 MHz to 960 MHz and is compatible with ISO18000-6C (EPC Class 1 Gen 2) standard. PCB1204 is a RFID tags for metal objects and mainly used in retail, warehouse logistics management, IT asset management, inventory management, assets management, automotive component tracking, industrial manufacturing, etc.
| Physical Specification: |
| Size | 12.0 x 4.0mm |
| Thickness | 1.5mm without ic bump, 2.5mm with ic bump |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive |
| Weight | 0.2g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | NXP UCODE 8 |
| Memory | EPC 128 bits, USER 0 bits, TID 96 bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 1.5m - (US) 902-928 MHz, on metal |
| Up to 1.5m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 0.6m - (US) 902-928 MHz, on metal |
| Up to 0.6m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
