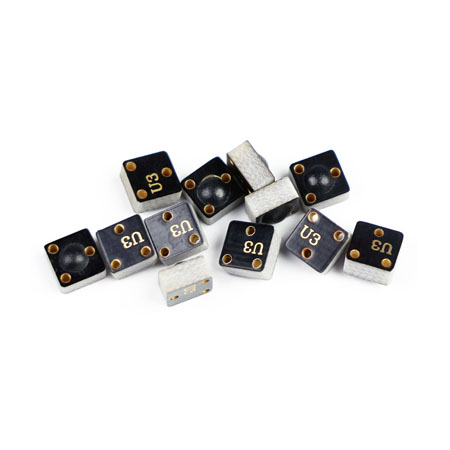

PCB0606 Micro rfid tags designed to embed into Micro indentations of metallic parts
- OPP IOT provides custom asset tags labels solutions that can suit very specific requirements. PCB0606 is a one of asset tags labels designed to embed into Micro indentations of metallic parts and components. it is also a micro rfid tags ,which shape in size only 6*6mm,thickness in 4.0mm, chip in Alien H3 EPC number can up to 480 bits ,user 512 bits ,TID 64bits and the data retention can up to 50 years ,write cycles in 100000 times. When it is attached to the metal surface, the reading distance can up to 1.1 meters by a fixed reader.
| Physical Specification: |
| Size | 6x6mm |
| Thickness | 3.0mm without IC bump, 4.0mm with IC bump |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive |
| Weight | 0.3g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 1.1m - (US) 902-928 MHz, on metal |
| Up to 1.1m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 0.8m - (US) 902-928 MHz, on metal |
| Up to 0.8m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
