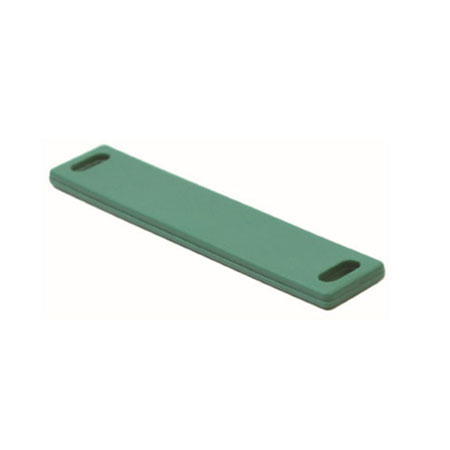

UHF Flexible tag LT1890

LT1890 is a flexible RFID tags for inventory, This UHF flexible tag has unique TPU housings that enable it to tolerate repeated bending or torsion and maintain excellent performance.
LT1890 Flexible RFID tags are waterproof and can be used in deep sea operations and deliver reliable performance and reading stability at non-metallic surface.
Rectangular LT1890 flexible rfid tags can attach snugly to round or irregular surfaces, such as cylindrical containers, plastic pipes, helmets or even trees.

Functional Specifications:

RFID Protocol	EPC Class1 Gen2, ISO18000-6C
Frequency	Global 840MHZ to 960MHZ
IC type	Alien Higgs-3
Memory	EPC 96bits (Up to 480bits) , USER 512bits, TID64bits
Write Cycles	100,000times
Functionality	Read/write
Data Retention	Up to 50 Years
Applicable Surface	Non Metal Surfaces
Read Range: (Fix Reader)	Up to 7.5m, off metal
Read Range: (Handheld Reader)	Up to 5.0m, off metal
Warranty	1 Year

Physical Specification:

Size	90x18mm, (Hole: 10*4mm)
Thickness	4.0mm
Material	TPU
Colour	Black (Red, Blue, Green,Yellow, White)
Mounting Methods	Cable Tie
Weight	8.0g

Enivironmenal Specification:

IP Rating	IP68
Storage Temperature	-40°C to +100°C
Operation Temperature	-40°C to +100°C
Certifications	Reach Approved,RoHS Approved,CE Approved
