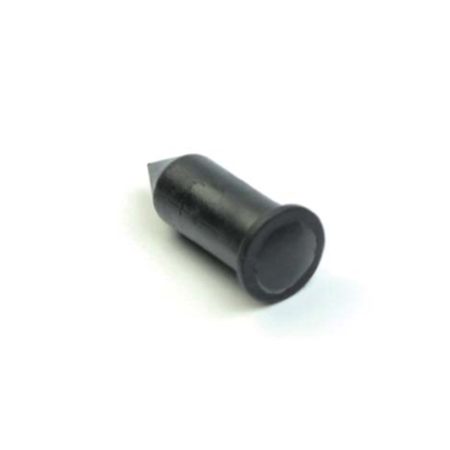

UHF RFID Nail Tag LT217D

RFID NAIL Tag LT217D is a unique nail-shaped uhf passive rfid tags that can easily be hammered into trees and wooden containers.
Nail tag LT217D has rust resistance in wet and chemical environment as well as water and dust proof. When RFID Nail Tag LT217D application in tree tracking,it can tell you the age of the tree in the forest, the fruiting rate of the fruit trees,and store all details of trees and wooden.It’s small size, looks harmonious when installing in the wood, pallet or trees and widely application in Tree identification,wooden assets,carton tracking,pallet tracking,Security.

Functional Specifications:

RFID Protocol	EPC Class1 Gen2, ISO18000-6C
Frequency	US 902-928MHz, EU 865-868MHz
IC type	Alien Higgs-3
Memory	EPC 96bits (Up to 480bits) , USER 512bits, TID64bits
Write Cycles	100,000times
Functionality	Read/write
Data Retention	Up to 50 Years
Applicable Surface	Non Metal Surfaces
Read Range : (Fix Reader)	Up to 30cm - (US) 902-928MHz Up to 30cm - (EU) 865-868MHz
Read Range : (Handheld Reader)	Up to 15cm - (US) 902-928MHz Up to 15cm - (EU) 865-868MHz
Warranty	1 Year

Physical Specification:

Enivironmenal Specification:

IP Rating	IP68
Storage Temperature	-30°С to +80°С
Operation Temperature	-20°С to +80°С
Certifications	Reach Approved,RoHS Approved,CE Approved
