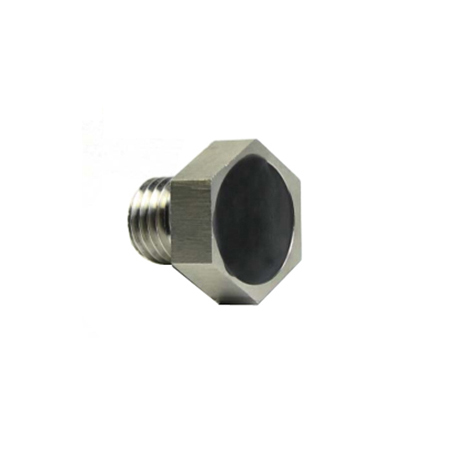

RFID equipment tracking tags LTM16S

Rugged 304 steel RFID metal Tags LTM16S are designed specifically for tagging objects under the most harsh environment. With its full metal jacket, it offers the best protection to the equipment tracking tags. RFID screw Tags LTM16S can be used almost anywhere with no limitation whatsoever, and it is perfectly suitable for the oil and gas industry, as well as for tracking all kinds of outdoor equipments. Equipment tracking tags LTM16S are designed to be screwed into a metallic object, Ideal for production control and asset management.

Functional Specifications:

RFID Protocol	EPC Class1 Gen2, ISO18000-6C
Frequency	US 902-928MHz, EU 865-868MHz
IC type	Alien Higgs-3
Memory	EPC 96bits (Up to 480bits) , USER 512bits, TID64bits
Write Cycles	100,000times
Functionality	Read/write
Data Retention	Up to 50 Years
Applicable Surface
Read Range(On Metal) : (Fix Reader)	Up to 200cm - (US) 902-928MHz, on metal Up to 200cm - (EU) 865-868MHz, on metal
Read Range(On Metal) : (Handheld Reader)	Up to 120cm - (US) 902-928MHz, on metal Up to 120cm - (EU) 865-868MHz, on metal
Warranty	1 Year

Physical Specification:

Enivironmenal Specification:

IP Rating	IP68
Storage Temperature	-40°С to +150°С
Operation Temperature	-40°С to +100°С
Certifications	Reach Approved,RoHS Approved,CE Approved
