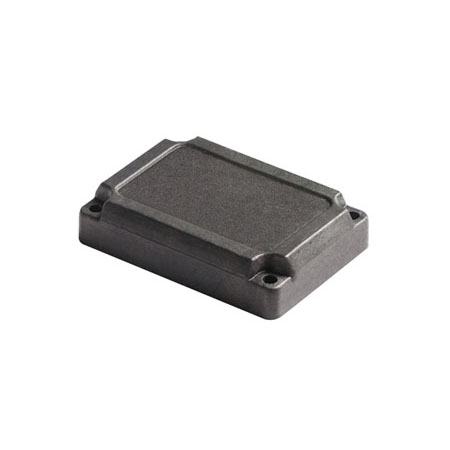

High temperature and chemical resistant tags LTDS0230
-
LTDS0230 is a UHF chemical resistant tag specifically designed for application in high temperature, PH0 to PH14, all liquid that PPS can handle with, and other harsh environments. LTDS0230 UHF RFID tags performs consistently well in conditions prevalent in the industrial, automotive and laboratory environments. The tag can survive application temperatures of up to 180º Celsius, has an IP68 rating and a read range of up to 5.6 meters.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | NXP UCODE 8 |
| Memory | EPC 128bits , USER 0bits, TID 96bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 Years |
| Applicable Surface | Metal Surfaces |
Read Range(On Metal) :(Fix Reader) |
6.6m , US ( 902-928MHZ ) |
Read Range(On Metal) :(Handheld Reader) |
3.5m , US ( 902-928MHZ ) |
| Warranty | 1 Year |
| Physical Specification: |
| Size | 41.0x29.0mm, Hole: D2.6mmx4 |
| Thickness | 11.8mm |
| Material | PPS |
| Colour | Black |
| Mounting Methods | Screw - Socket head cap screw(M2) |
| Weight | 21g |
| Enivironmenal Specification: |
| IP Rating | IP68, IP69K |
| Storage Temperature | -60°С to +180°С |
| Operation Temperature | -40°C to +150°C |
| Withstand PH | PH0 to PH14,and all other liquid that PPS can handle with |
| Reliability testing terms and results: | 1. Heating in oven at 200°С for 4 hours; 2. Soaking in water 2 meters depth for 8 hours immediately; 3. Cleaning with ultrasonic at 70°C for 90 minutes; 4. 200Kpa pressure test for 2 hours under the high temperature and high humidity; After running 30 circles the above steps ,the tags with no damage. |
| Compression strength | 150Mpa |
| Certifications | Reach, RoHs, CE |
