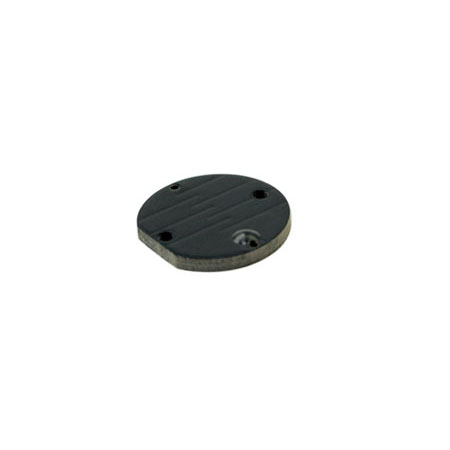

For high Temperature RFID on metal tags LT1920

LT1920 are RFID on metal tags designed to reliably perform in high temperature conditions. These RFID on metal tags offer robust performance at an attractive price point. constructed with high temperature material, it can endure temperatures of 280°С for 50 minutes, 250°С for 150minutes. LT1920 UHF on metal tags are EPC Class 1 Gen 2 and RoHS compliant and has an IP68 rating. The tags are available in frequencies for North America, Europe, Japan and more.

Functional Specifications:

RFID Protocol	EPC Class1 Gen2, ISO18000-6C
Frequency	US 902-928MHz, EU 865-868MHz
IC type	Alien Higgs-4
Memory	EPC 128bits, USER 128bits, TID64bits
Write Cycles	100,000times
Functionality	Read/write
Data Retention	Up to 50 Years
Applicable Surface	Metal Surfaces
Read Range(On Metal) : (Fix Reader)	Up to 250cm - (US) 902-928MHz, on metal Up to 270cm - (EU) 865-868MHz, on metal
Read Range(On Metal) : (Handheld Reader)	Up to 120cm - (US) 902-928MHz, on metal Up to 140cm - (EU) 865-868MHz, on metal
Warranty	1 Year

Physical Specification:

Size	D:20mm, (Hole: D2mmx2)
Thickness	2.1mm without IC bump, 2.8mm with IC bump
Material	High temperature material
Colour	Black
Mounting Methods	Adhesive, Screw
Weight	1.0g

Enivironmenal Specification:

IP Rating	IP68
Storage Temperature	-55°C to +200°C (280°С for 50 minutes, 250°С for 150minutes)
Operation Temperature	-40°C to +150°C (working 10hours in 180°С)
Certifications	Reach Approved,RoHS Approved,CE Approved
