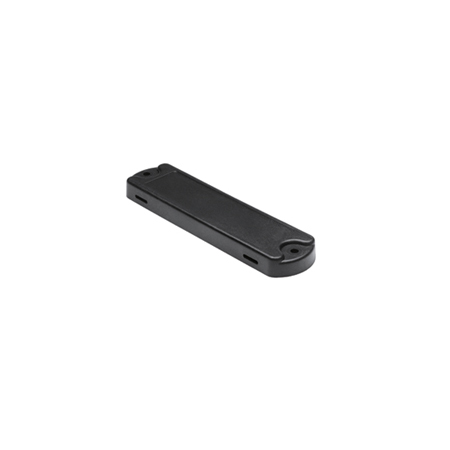

Durable on-metal RFID hard tag LTH30120
-
Heary120 is a long distance RFID hard tag capable of reading on, off, and near metal surfaces. it is available to Screw, back glue and tie the tags, while enabling read ranges of up to 9.5 meters. it has been designed for heavy industry and outdoor applications. Heary120 RFID hard tag is best suited to outdoor applications, including container tracking for yard management, cargo tracking, and defense asset management.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3/NXP UCODE8 |
| Memory | EPC 96bits (Up to 480bits) , User512bits, TID64bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 years |
| Applicable Surface | Metal Surfaces |
Read Range: |
9.5m(US) 902-928MHz, on metal; 9.3m(EU) 865-868MHz, on metal; |
Read Range: |
6.0m(US) 902-928MHz, on metal; |
| Warranty | 1 Year |
| Physical Specification: |
| Size | 120x30x10mm, front hole: Dia4mmx2, profile hole：10x2mmx2 |
| Thickness | 10mm |
| Material | PA66 |
| Colour | Black ( customed) |
| Mounting Methods | Screw, back glue, tie |
| Weight | 46g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Storage Temperature | -40℃ to +120℃ |
| Operation Temperature | -25℃ to +120℃ |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
