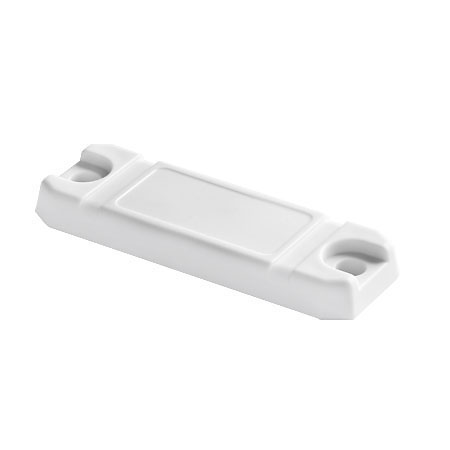

Long reading range up to 11 meters On-metal RFID tag LT2369

LT2369 long range passive rfid tag has an operating frequency of either 902-928 MHz (US) or 865-868 MHz (EU) and is based on the Alien Higgs-3 IC, which provides industry-leading performance and up to a 11 meters read range. The LT2369 rugged RFID tag is IP68-rated, making it suitable for on metal surface,harsh outdoor environments as well as exposure to water and contaminants. it can be attached using high-performance adhesives, via a rivet hole, or using a cable tie.

Functional Specifications:

RFID Protocol	EPC Class1 Gen2, ISO18000-6C
Frequency	US 902-928MHz, EU 865-868MHz
IC type	NXP UCODE 8
Memory	EPC 128bits , USER 0bits, TID 96bits
Write Cycles	100,000times
Functionality	Read/write
Data Retention	Up to 50 Years
Applicable Surface	Metal Surfaces
Read Range(On Metal) : (Fix Reader)	Up to 11.0m - (US) 902-928MHz, on metal Up to 10.0m - (US) 865-868MHz, on metal
Read Range(On Metal) : (Handheld Reader)	Up to 5.5m - (US) 902-928MHz, on metal Up to 5.0m - (US) 865-868MHz, on metal
Warranty	1 Year

Physical Specification:

Enivironmenal Specification:

IP Rating	IP68
Storage Temperature	-40°C to +85°C
Operation Temperature	-25°C to +85°C
Certifications	Reach Approved,RoHS Approved,CE Approved
