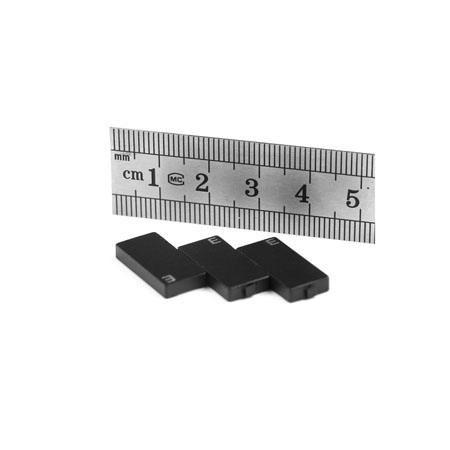

UHF RFID tag LT0919CER designed application on metal surface
- LT0919CER ceramic rfid tag operates on 860 MHz-960 MHz frequency. The Size is 19x9mm, thickness is 3.0mm and the weight is 2.8g. It can be affixed onto pallets and can cover up to a 3.0 meters read range. So LT0919CER can be used as rfid pallet tags. It is heat resistance, water resistance and chemical resistance, LT0919CER RFID tag has good performance on metal surface, which can be used for Instrument tracking, tool tracking, medical device management, surgical instrument management, small asset tracking, IT tracking and Weapons tracking etc.

| Physical Specification: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3 |
| Memory | EPC 96bits, USER 512bits, TID64bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) : (Fix Reader) |
Up to 3.0m, on metal |
| Read Range(On Metal) : (Handheld Reader) |
Up to 1.5m, on metal |
| Warranty | 1 Year |
| Functional Specifications: |
| Size | 19.0x9.0mm |
| Thickness | 3.0mm |
| Material | Ceramic |
| Colour | Black |
| Mounting Methods | Adhesive |
| Weight | 2.8g |
| Environmental parameters: |
| IP Rating | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +85°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
