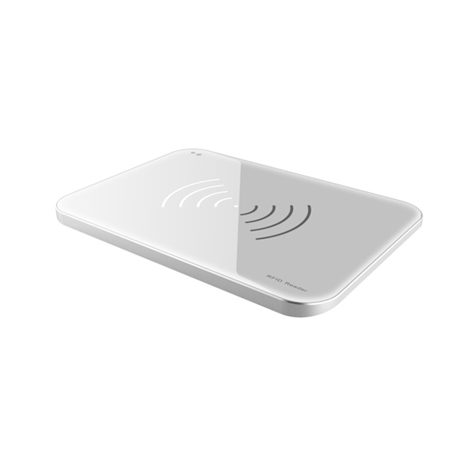

Long range rfid reader with USB interface OPP-D07
-
OPP-D07 is a long range rfid reader with an integrated circularly polarized antenna for long range applications,The reading distance with typical UHF Gen 2 RFID tags can be more than 4 meters.
RFID integrated reader OPP-D07 is the perfect choice for various applications such as retail collection, logistics, identity verification, smart parking, access control, anti-counterfeiting system, production process control,point-of-sale, document tracking, tag programming stations and more.
The synopsis of long range rfid reader OPPD07: OPP-D07 is a high-performance long range RFID reader with fashionable appearance. It integrates high-performance RFID modules and adopts a uniquely designed antenna, which can accurately control the reading range and realize the rapid reading and writing processing of electronic tags while maintaining a high reading rate.
I: Toughened glass panel, beautiful and fashionable |
| Mechanical electrical performance: |
| Equipment size Dimension：(MM) | 387(L)*277(W)*19(H)(±1) |
| Diemension including packaging(MM) | 445(L)*342(W)*63(H)(±3) |
| Net weight：(KG) | 1.73(±0.01) |
| Gross weight：(KG) | 2.02(±0.02) |
| RF Antenna | ≥7dB, the uniquely designed antenna can accurately control the reading range |
| Shell | Surface: tempered glass, bottom shell: ABS+PC |
| Performance Index: |
| Tag / Transponder Protocols | EPCglobal C1 Gen 2 ISO 18000-6C |
| Frequency | 865~868MHz/902～928MHz(Can be adjusted according to different countries or regions) |
| Frequency modulation | FHSS or fixed-frequency, can be set by software |
| RF output | from 0 dBm to 26dBm* with +/-1dBm |
| Reading distance | ＞4m(eg.9662，depends on tag) |
| Peak inventory speed | >50 tags/sec |
| Tag RSSI | Supported |
| Power | USB drive free (windows, Android)5V,400mA,2W(MAX) |
| Communication interface | USB 2.0 |
| API Support | C#、JAVA |
| Environment: |
| Operating Temp | -20～+55℃ |
| Storage Temp | -20～+85℃ |
| Humidity | 5%～95%RH, Non-condensing |
