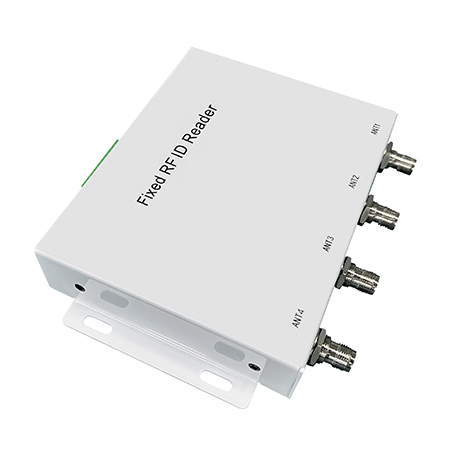

4 Channels UHF RFID Fixed Reader OPPMAX4

The OPPMAX4 is a 4-port RFID fixed reader designed for both indoor and outdoor applications. Adopt Impinj Indy E710 chip, with high-performance multi-tag identiﬁ cation algorithms.
Linux rfid reader OPPMAX4 has built-in Linux operating system, which not only meets the complex customer business requirements, but also responds to various label operations independently and quickly. Multi-tag reading performance is excellent, supporting intensive reading, large capacity tag reading and writing, received signal strength detection (RSSI). It has reliable network adaptability, supports a variety of network protocols, and is easy to deploy large-scale applications.

Mechanical electrical performance:

Equipment size Dimension (MM)	187(L)123(W)34(H) (±1)
Diemension including packaging (MM)	317(L)255(W)66(H) (±3)
Net weight (KG)	1.00± (±0.1)
Gross weight (KG)	1.50± (±0.1)
Shell	White, sheet metal, durable

Performance Index:

Tag/Transponder Protocols	EPCglobal Gen 2 (ISO 18000-6C)
RF Connector	4 RP-TNC antenna connectors
Frequency	865~868MHz/902～928MHz (Can be adjusted according to different countries or regions)
Frequency modulation	FHSS or fixed-frequency, can be set by software
RF output	from 0 dBm to 33 dBm* with +/-1dBm
Reading distance	9dbi Antenna configuration, typical read range: 10 to 20 m (depends on tag)
Peak inventory speed	> 400 tags/sec
Tag Buffer Size	100,000tags @ 96 bit EPC
Tag RSSI	Supported
Antenna Detector	Supported
Working mode	the principal and subordinate mode /off-line working mode/Trigger mode
Power	With 220V AC input, the output of +12 V/4A DC power converter, POE（Optional）
input / output (GPIO)	2 inputs, 4 output
ommunication interface	RJ45(10/100 Base-T Ethernet), RS232
Operating System	Linux
Communication protocol	RS-232, TCP/IP, Modbus (Optional), HTTP/HTTPS (Optional),MQTT (Optional), RabbitMQ (Optional)
Host API	C#, JAVA
Development Environment	Linux, Android, Windows, PLC, Web

Environment:
