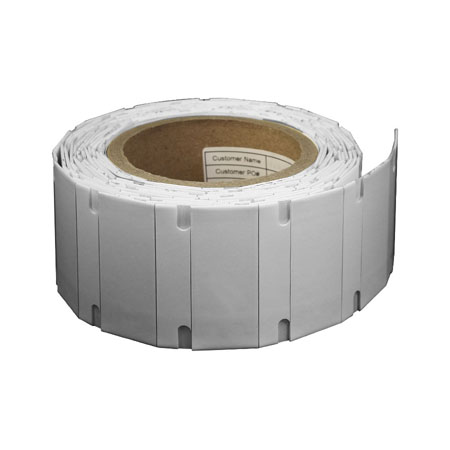

adhesive rfid tags

Application on metal and liquid surface adhesive rfid tags FLE6006

  • FLE6006 is adhesive rfid tags and suitable for use in rich of metals and liquids environments . The adhesive rfid tags can be converted and packaged into any kind of labels with printing, barcodes or graphic etc. Its paper-thin profile makes it easy to attach to curved objects such as cylinder bottles, pipes, metal containers and fixed assets. As one of important rfid label manufacturers, OPP IOT can develop and custom rfid tags that meet your unique material property or specific environmental requirements.

Physical Specification:
Size 60 x 6mm
Thickness 1.0mm
Materail Foam
Colour White ( customizable color printing)
Mounting Methods Adhesive
Weight 1.3g
Recommended Printer Zebra R110Xi4 / Postek TX3R / SATO CL4NX

Functional Specifications:
Air Interface Protocol - Standard EPC global Gen2,ISO/IEC 18000-6C
Operating Frequency (EU)865~868MHz / (US)902~928MHz
IC Type UCODE 8
Memory EPC 128bits, User 0bits, TID 96bits
Write Cycles 100,000 Times
Functionality Read/write
Data Retention 50 Year
Applicable Surface Metal Surfaces
Read Range(fixed reader) Up to 2.0m - on metal
Up to 1.5m - on liquid
Warranty 1 year

Environmental parameters:
IP Rating: IP57
Temperature -20~+70℃
Certifications Reach Approved, RoHS Approved, CE Approved
