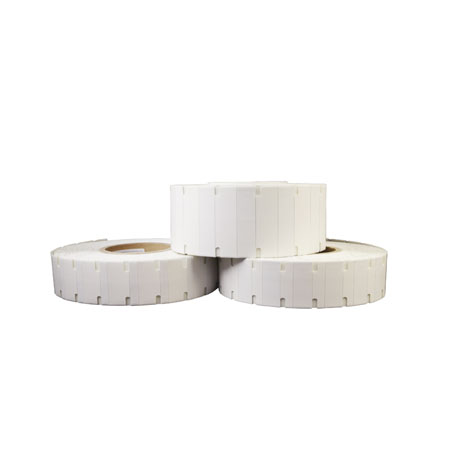

Application on metal and non metal surface rfid paper tag FLE9842
-
FLE9842 is rfid paper tag, which can be used as an RFID windshield sticker, especially for irregular and uneven surface,such as steel boiler,metal container,steel pipe,etc.RFID Paper Tag FLE9842 can be used for metal and non-metal assets,but better performance on non-metal surface. It can be printed and programmed by RFID printers simultaneously,such as Zebra R110Xi4 / Postek TX3R / SATO CL4NX,etc.
| Physical Specification: |
| Size | 98 x 42mm |
| Thickness | 1.0mm |
| Materail | Foam |
| Colour | White ( customizable color printing) |
| Mounting Methods | Adhesive |
| Weight | 3.5g |
| Recommended Printer | Zebra R110Xi4 / Postek TX3R / SATO CL4NX |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Impinj Monza R6-P |
| Memory | EPC128bits , User 64bits, TID96bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces＋non metal surface |
| Read Range (fixed reader) |
Up to 6.0m - on metal |
| Up to 6.0m - off metal | |
| Read Range (handheld reader) |
Up to 4.0m - on metal |
| Up to 6.5m - off metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP57 |
| Temperature | -20～+70℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
