Anti metal with Alien Higgs-3 Chip RFID tag PCB2208

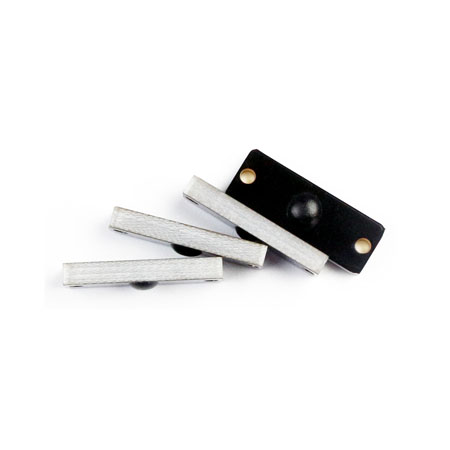

- PCB2208 is a anti metal rfid tag equipped with the Alien Higgs-3 IC chip which provides industry-leading performance and up to a 4.7 meters reading range. Size 22x8mm with a thickness of 3.0mm. This alien rfid tags is complies with ISO18000-6C standard and work at frequency of (EU)865~868MHz / (US)902～928MHz. At present, OPP IOT supply anti metal RFID tag with more than 100 existing moulds which are widely used for tracking medical devices, surgical instruments tray, heavy industry, oil & gas & mining, automatic production line, logistic tray tracking, warehouse storage rack, container tracking and so on.
| Physical Specification: |
| Size | 22x8mm, (Hole: D2mm*2) |
| Thickness | 3.0mm without IC bump, 3.8mm with IC bump |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 1.3g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 4.5m - (US) 902-928 MHz, on metal |
| Up to 4.7m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 2.6m - (US) 902-928 MHz, on metal |
| Up to 3.0m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
