Read range up to 3.2 meters RFID label tag PCBD20

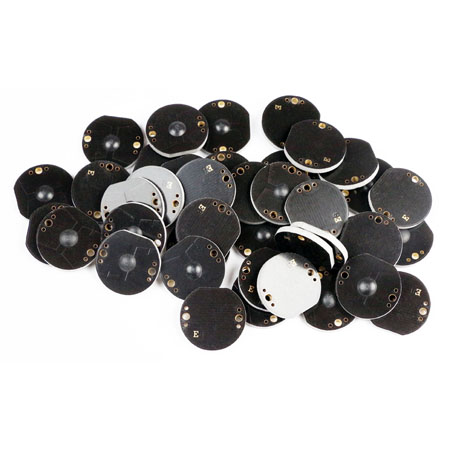

- OPP IOT provide a variety of rfid readers and tags that would meet your specifics needs. PCBD20 is one of best sell rfid label tag in our company, Its diameter is 20mm and thickness is 2.8mm, PCBD20 rfid label tag offer a read range of up to 3.2 meters and 512 bits User read/write memory. This RFID label tag is suitable for a wide variety of automatic vehicle identification transportation applications, including electronic toll collection, airports and ground transportation management systems, parking access, and security access applications.
| Physical Specification: |
| Size | Diameter 20mm, (Hole: D2mm*2) |
| Thickness | 2.0mm without IC bump, 2.8mm with IC bump |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 1.0g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 3.2m - (US) 902-928 MHz, on metal |
| Up to 2.8m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 2.4m - (US) 902-928 MHz, on metal |
| Up to 2.3m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
