Small passive rfid tags Cer0505 for tool tracking
-

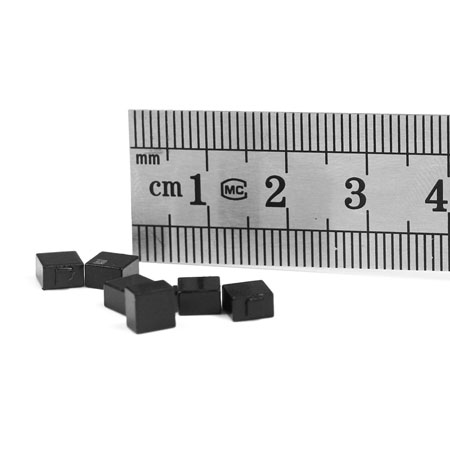

Cer0505 is a Small passive RFID Tag, which is very small, the size is only 5x5x3mm, can be used for surgical and machinery tool management. Though the size is small, the reading range can up to 1.0 meters when mounting on metal surface. It is Heat resistance, water resistance and chemical resistance, Cer0505 is a good RFID for tool tracking and it also can be used for Instrument tracking, Tool tracking, Medical device management, Surgical instrument management, Small asset tracking, IT tracking and Weapons tracking etc.
| Physical Specification: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3 |
| Memory | EPC 96bits, USER 512bits, TID64bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) : (Fix Reader) |
Up to 1.0m, on metal |
| Read Range(On Metal) : (Handheld Reader) |
Up to 0.6m, on metal |
| Warranty | 1 Year |
| Functional Specifications: |
| Size | 5.0x5.0mm |
| Thickness | 3.0mm |
| Material | Ceramic |
| Colour | Black |
| Mounting Methods | Adhesive |
| Weight | 0.8g |
| Environmental parameters: |
| IP Rating | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +85°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
