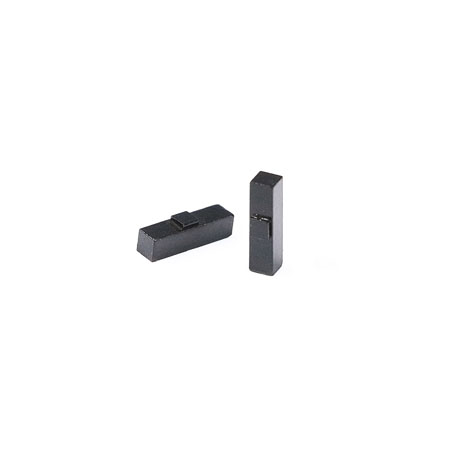

Cer1002 UHF tag is suitable for a variety of relatively harsh operation environments
-
UHF tag Cer1002 is based on ceramic material packaging with high electrical characteristics and high temperature resistance. The RFID antenna for ceramic substrate is different from the etched copper antenna on the PCB substrate. it is printed by conductive silver paste. The UHF passive rfid tag cer1002 sensitivity is high because of small dielectric loss and stable antenna performance.
Cer1002 uhf passive rfid tags is suitable for a variety of relatively harsh operation environments, such as high temperature industrial production or open spaces, medical instruments disinfection, open towers near poles or near the equator, utility poles, road assets, equipments patrol inspection etc.
| Physical Specification: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3 |
| Memory | EPC 96bits, USER 512bits, TID64bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) : (Fix Reader) |
Up to 1.0m, on metal |
| Read Range(On Metal) : (Handheld Reader) |
Up to 0.65m, on metal |
| Warranty | 1 Year |
| Functional Specifications: |
| Size | 10.0x2.5mm |
| Thickness | 2.5mm |
| Material | Ceramic |
| Colour | Black |
| Mounting Methods | Adhesive |
| Weight | 0.8g |
| Environmental parameters: |
| IP Rating | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +85°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
