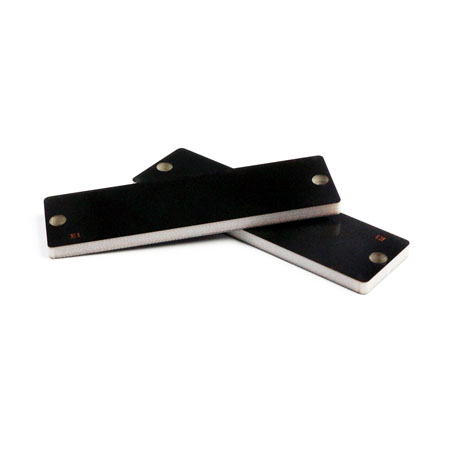

RFID equipment tags LT2070PCB for asset tagging
- LT2070PCB is a rfid equipment tags designed to work in a metal environment or applied to a metal surface with a long reading range up to 10.3 meters. Size 70x20mm, thickness 3.6mm,weight 11.0g, It is ATEX certified and compliant with EPC C1G2 (ISO18000-6C), LT2070PCB is an ideal choice for rfid asset tagging, its typical application include asset management, logistics and warehouse management, large equipment management, container management, industrial manufacturing, etc.
| Physical Specification: |
| Size | 70x20mm, (Hole: D4mm) |
| Thickness | 3.6mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 11.0g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | US 902-928MHz, EU 865-868MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 10.5m - (US) 902-928 MHz, on metal |
| Up to 10.3m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 6.3m - (US) 902-928 MHz, on metal |
| Up to 6.6m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
