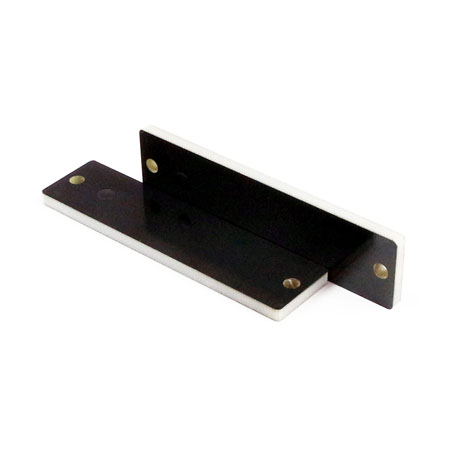

Anti metal tag LT2080PCB is deigned for RFID pallet tracking
- Anti metal tag LT2080PCB is deigned for asset tracking application, it is IP68, can be used outdoor and with two mounting holes that enables the flexibility of different mounting requirements, it can be soldered to object to make sure tag will not fall off. LT2080PCB as one of the asset management tags, it improves the inventory efficiency and accuracy by their excellent reading distance and stable performance. When tag it on pallet for RFID pallet tracking application, people can track the pallet real-time information and quickly do the inventory.
| Physical Specification: |
| Size | 80x20mm (Hole: D4mm) |
| Thickness | 3.5mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 12.0g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 9.0m - (US) 902-928 MHz, on metal |
| Up to 9.0m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 5.0m - (US) 902-928 MHz, on metal |
| Up to 5.0m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
