Home > products > PCB On metal RFID tags > UHF anti-metal RFID tag LT3570PCB

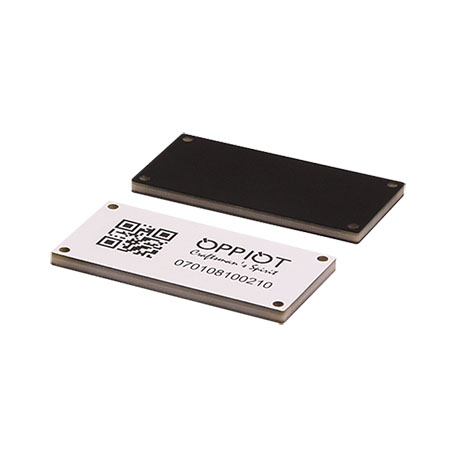

Anti-metal RFID tag doubles as a nameplate tag LT3570PCB
- The LT3570PCB is a high-performance anti-metal RFID tag that doubles as a nameplate tag, combining identification and durability in one solution. Designed for mounting directly on metallic surfaces, it delivers exceptional read ranges of up to 11.3 meters, ensuring fast and accurate tracking of assets even from a distance. With its nameplate form factor and robust construction, the LT3570PCB is ideal for long-term asset labeling and management in industrial, logistics, and equipment tracking applications.
| Physical Specification: |
| Size | 70x35mm, (Hole: D3.0x4mm) |
| Thickness | 3.7mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 19g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (US) 902-928MHz, (EU) 865-868MHz |
| IC Type | NXP Ucode 8 |
| Memory | EPC 128 bits , USER 0 bits, TID 96 bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 11.3m - (US) 902-928 MHz, on metal |
| Up to 10.8m - (EU) 865-868 MHz, on metal | |
| Read Range(handheld reader) | Up to 5.5m - (US) 902-928 MHz, on metal |
| Up to 5.1m - (EU) 865-868 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
