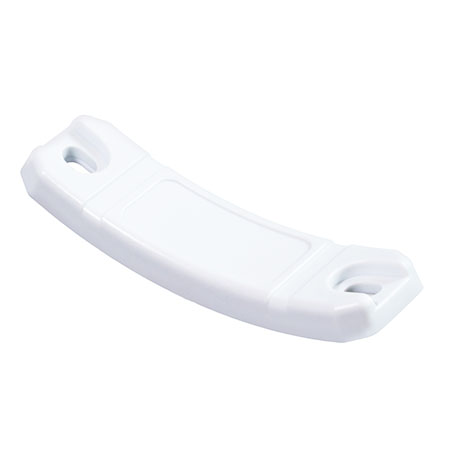

Curved RFID tags OPP8022 for curved metal surfaces
- The OPP8022 Curved RFID tags is engineered to attach securely to curved metal surfaces such as beer kegs and LPG bottle necks. It delivers read ranges of up to 6.5 m on metal, ensuring reliable performance in demanding environments. Its rugged, IP68-rated housing withstands rough handling, as well as rigorous cleaning and maintenance processes. Powered by the NXP UCODE 8 IC, the OPP8022 offers 128 bits of EPC memory and 96 bits of TID memory for efficient identification and tracking.
| Physical Specification: |
| Size | 80.0x22.0mm, (Hole: 7.0X5.0mm) |
| Thickness | 7.0mm |
| Material | PC |
| Colour | White |
| Mounting Methods | Adhesive, Screw |
| Weight | 11g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC Class1 Gen2, ISO18000-6C |
| Operating Frequency | US 902-928MHz |
| IC Type | NXP Ucode 8 |
| Memory | EPC 128 bits , USER 512 bits, TID 96 bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 6.5m - (US) 902-928 MHz, on metal |
| Read Range(handheld reader) | Up to 3.5m - (US) 902-928 MHz, on metal |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +85°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
