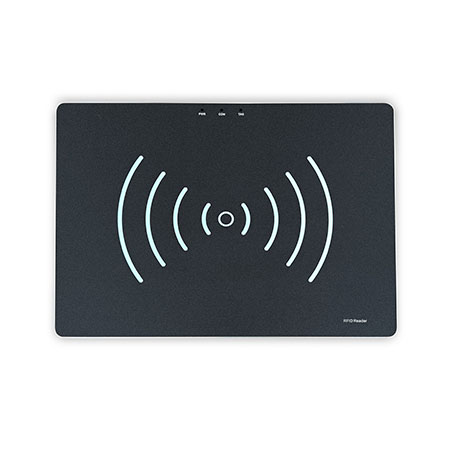

UHF integrated rfid reader writer OPPD03

The OPPD03 RFID reader writer is a device designed to interact with RFID tags, which are small electronic units that contain a unique identifier and can be wirelessly read from or written to by the reader/writer. Operating through radio waves, these devices enable fast and efficient data transfer between the reader/writer and RFID tags. The OPPD03 rfid integrated reader offers several advantages, including enhanced efficiency, accuracy, versatility, real-time tracking, durability, cost-effectiveness, security, and scalability.

The synopsis of the rfid rfid integrated reader OPPD03:

The OPP-D03 is a low profile, high-performance UHF rfid integrated reader. Adopt Impinj IndyR2000 chip, with high-performance multi-tag identification algorithms.
The OPP-D03 has built-in Linux operating system, which not only meets the complex customer business requirements, but also responds to various label operations independently and quickly. Multi-tag reading performance is excellent, supporting intensive reading, large capacity tag reading and writing, received signal strength detection (RSSI). It has reliable network adaptability, supports a variety of network protocols, and is easy to deploy large-scale applications.

Mechanical electrical performance:

Equipment size Dimension：(MM)	500(L)700(W)35(H)(±1)
Net weight：(KG)	6.78(±0.02)
RF Antenna	integrated 4pcs 8 dBiC antennas
Shell	Black acrylic panel, milky white metal bottom shell, the whole machine is black

Performance Index:

Tag / Transponder Protocols	EPCglobal Gen 2 (ISO 18000-6C), ISO 18000-6B (optional)
Frequency	865~868MHz/902～928MHz(Can be adjusted according to different countries or regions)
RF output	from 0 dBm to 30 dBm* with +/-1dBm
Reading distance	＞8m(eg.9662，depends on tag)
Peak inventory speed	>700 tags/sec
Tag RSSI	Supported
Antenna Detector	Supported
Power	With 220V AC input, the output of +12 V/5A DC power converter
Communication interface	RJ45(10/100 Base-T Ethernet)、RS232、USB (for debugging)
Operating System	Linux
Communication protocol	RS-232、TCP/IP、 Modbus、HTTP/HTTPS、MQTT、RabbitMQ
Host API	C#、JAVA
Development Environment	Linux、Android、Windows、PLC、Web

Environment:

Operating Temp	-20～+55℃
Storage Temp	-20～+85℃
Humidity	5%～95%RH, Non-condensing
