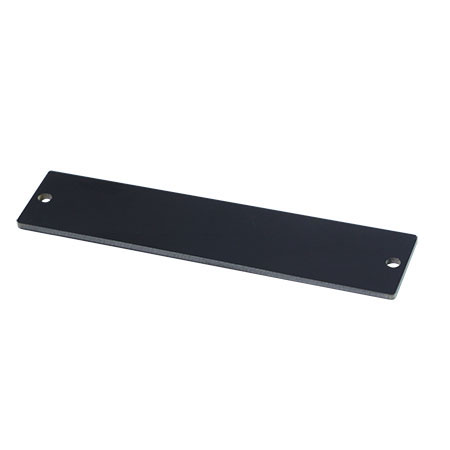

Up to 25m long distance rfid tag PCB8520
- The PCB8520 is a high-performance long distance RFID tag engineered for metallic environments. When attached to a metal surface and read with a fixed RFID reader, it achieves an impressive read range of up to 25 meters. Its robust design ensures reliable performance in a wide variety of metal-related applications, from industrial asset tracking and equipment management to logistics and warehouse operations, making it an ideal choice for both work and everyday metal-environment tracking needs.
| Physical Specification: |
| Size | 85x20mm, (Hole: D3.0x2mm) |
| Thickness | 1.6mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 3g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | Global 840Mhz to 960Mhz |
| IC Type | NXP Ucode 8 |
| Memory | EPC 128 bits , USER 0 bits, TID 96 bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 21m - (US) 902-928 MHz, on metal |
| Up to 25m - (EU) 865-868 MHz, on metal | |
| Read Range(handheld reader) | Up to 10m - (US) 902-928 MHz, on metal |
| Up to 12m - (EU) 865-868 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
