Home > products > UHF RFID chemical resistant tags OPP6019s

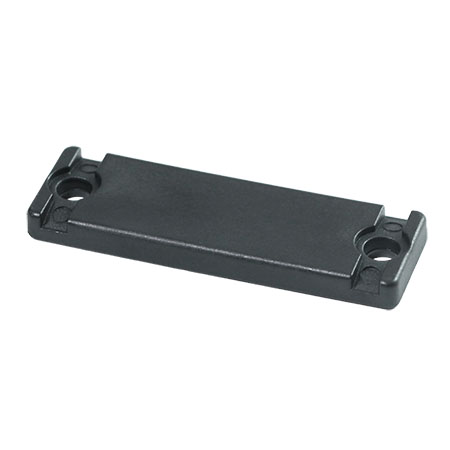

PPS on-metal industrial RFID solutions tag OPP6019s

The OPP6019S is a UHF anti-metal RFID tag engineered for reliable performance in industrial environments. Built to withstand chemical exposure including Fuel B, mineral oil, petroleum, salt mist, and vegetable oil, it delivers consistent identification in the harshest conditions. With an IP68 protection rating, the industrial rfid solutions tag OPP6019S is fully dust-tight and capable of prolonged immersion in water, making it ideal for asset tracking and management in demanding industrial applications.

Physical Specification:

Functional Specifications:

Air Interface Protocol - Standard	EPC Class1 Gen2, ISO18000-6C
Operating Frequency	(US) 902-928MHz, (EU) 865-868MHz
IC Type	NXP Ucode 9
Memory	EPC 96 bits , USER 0 bits, TID 96 bits
Write Cycles	100,000 Times
Functionality	Read/write
Data Retention	50 Year
Applicable Surface	on-Metal Surfaces
Read Range(fixed reader)	Up to 6.0m - (US) 902-928 MHz, on metal
Read Range(fixed reader)	Up to 5.4m - (EU) 865-868 MHz, on metal
Read Range(handheld reader)	Up to 2.5m - (US) 902-928 MHz, on metal
Read Range(handheld reader)	Up to 2.3m - (EU) 865-868 MHz, on metal
Warranty	1 year

Environmental parameters:

IP Rating:	IP68(valid within 90°С)
Storage Temperature	-30°С to +90°С ( Withstand 150°С for 24 hours; 200°С for one hour, withstand five times with intervals; 260°С for 5 minutes, withstand 10 times with intervals)
Operation Temperature	-30°C to +90°C
Withstands Exposure To:	Fuel B, mineral oil, petroleum, salt mist, vegetable oil;
Certifications	Reach Approved, RoHS Approved, CE Approved
