Home > products > Ceramic rfid tags > RFID Tag CER3030

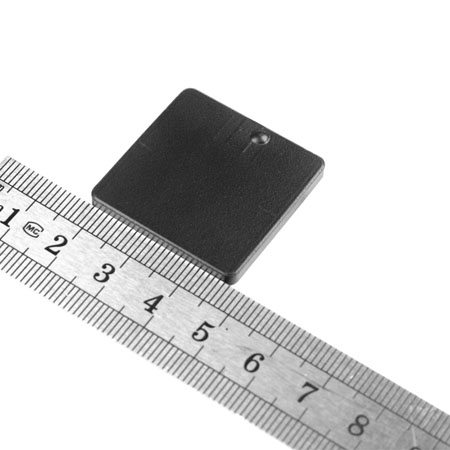

Compact Ceramic UHF-band RFID Tags CER3030 for vehicle and container tracking
-
CER3030 RFID Tags are optimized for placement on metal assets and can be used as an RFID vehicle tag, It is compliant with EPC C1G2 (ISO18000-6C), size 30x30mm, thickness 3.0mm, This UHF tag is made of very strong ceramic material and offer 512 bits of user memory with a long reading distance of 10 meters, It is widely used in rfid container tracking, vehicle tracking, equipment management, asset management, tool tracking, medical equipment, etc.
| Physical Specification: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) : (Fix Reader) |
Up to 10m - on metal |
| Read Range(On Metal) : (Handheld Reader) |
Up to 7.0m - on metal |
| Warranty | 1 Year |
| Functional Specifications: |
| Size | 30x30mm |
| Thickness | 3.0mm |
| Material | Ceramic |
| Colour | Black |
| Mounting Methods | Adhesive |
| Weight | 14.0g |
| Environmental parameters: |
| IP Rating | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +85°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
