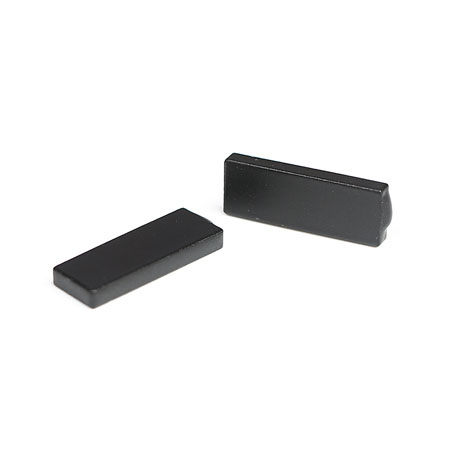

CER2509 ceramic rfid tag for asset tracking

  • CER2509 is a UHF rfid tags for asset tracking, it has a hard ceramic shell to protect them from exposure to extreme conditions. CER2509 is IP68-rated and has high temperature resistance, water resistance and chemical resistance. The size is 25x9mm, the thickness is 3.0mm, and the weight is 3.8g. When it is installed on the metal asset surface, the reading range can reach 4.2 meters, you can use it for tracking your company’s physical assets such as valuable electronics, critical equipment and tools, inventory or other items. Our Asset tracking labels CER2509 can help you make sure your employees have the equipment they need to do their jobs and helps protect valuables.

Physical Specification:
RFID Protocol EPC Class1 Gen2, ISO18000-6C
Frequency US 902-928MHz, EU 865-868MHz
IC type Alien Higgs-3
Memory EPC 96bits, USER 512bits, TID64bits
Write Cycles 100,000times
Functionality Read/write
Data Retention Up to 50 Years
Applicable Surface Metal Surfaces
Read Range(On Metal) :
(Fix Reader)
Up to 4.2m, on metal
Read Range(On Metal) :
(Handheld Reader)
Up to 2.9m, on metal
Warranty 1 Year

Functional Specifications:
Size 25.0x9.0mm
Thickness 3.0mm
Material Ceramic
Colour Black
Mounting Methods Adhesive
Weight 3.8g

Environmental parameters:
IP Rating IP68
Storage Temperature -40°C to +150°C
Operation Temperature -40°C to +85°C
Certifications Reach Approved,RoHS Approved,CE Approved
