Ceramic RFID tag CER2525 application in logistics
-

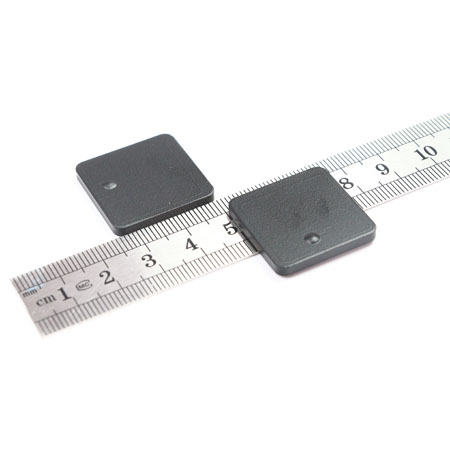

As one of trusted RFID manufactures, OPP IOT offers a wide range of UHF tags available in several designs application in logistics. CER2525 is a one of the popular rfid in logistics, the size is 25x25mm, the thicking is 3.0mm and the weight is 9.6g. CER2525 is achieved by built-in antenna with ceramic multilayer structure and mounted Alien Higgs-3 IC inside cavity, it has a high performance for a wide range of industrial rfid tag application and metal asset management applications, such as asset tracking, specialty tracking, and IT asset tracking.
| Physical Specification: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3 |
| Memory | EPC 96bits, USER 512bits, TID64bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 6.5m - (US) 902-928 MHz, on metal |
| Up to 5.5m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 4.6m - (US) 902-928 MHz, on metal |
| Up to 3.8m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 Year |
| Functional Specifications: |
| Size | 25.0x25.0mm |
| Thickness | 3.0mm |
| Material | Ceramic |
| Colour | Black |
| Mounting Methods | Adhesive |
| Weight | 9.6g |
| Environmental parameters: |
| IP Rating | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +85°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
