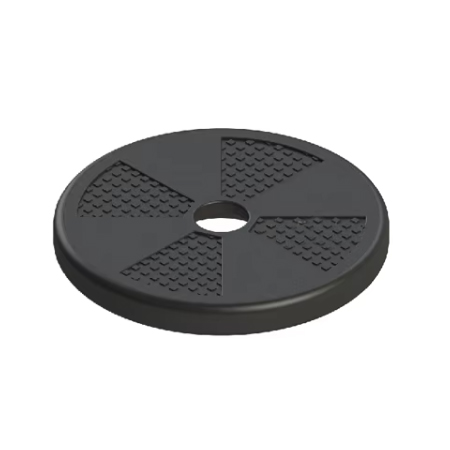

PPS non-metal UHF industrial RFID tag OPPD30

The OPPD30 is a UHF industrial RFID tag featuring a rugged PPS housing, purpose-built for use on non-metal surfaces. Designed for extreme durability, it withstands exposure to challenging environments such as Fuel B, mineral oil, petroleum, salt mist, and vegetable oil. Its robust construction ensures reliable performance in demanding industrial applications, delivering accurate asset tracking and identification even under harsh operating conditions.

Physical Specification:

Functional Specifications:

Air Interface Protocol - Standard	ISO18000-3M1, ISO15693
Operating Frequency	Global 840Mhz to 960Mhz
IC Type	NXP Ucode 9
Memory	EPC 96 bits , USER 0 bits, TID 96 bits
Write Cycles	100,000 Times
Functionality	Read/write
Data Retention	50 Year
Applicable Surface	Non-Metal Surfaces
Read Range(fixed reader)	Up to 3.0m - (US) 902-928 MHz, off metal
Read Range(fixed reader)	Up to 2.3m - (EU) 865-868 MHz, off metal
Read Range(handheld reader)	Up to 1.5m - (US) 902-928 MHz, off metal
Read Range(handheld reader)	Up to 1.1m - (EU) 865-868 MHz, off metal
Warranty	1 year

Environmental parameters:

IP Rating:	IP68(valid within 90°С)
Storage Temperature	-30°С to +90°С ( Withstand 150°С for 24 hours; 200°С for one hour, withstand five times with intervals; 260°С for 5 minutes, withstand 10 times with intervals)
Operation Temperature	-30°C to +90°C
Withstands Exposure To:	Fuel B, mineral oil, petroleum, salt mist, vegetable oil;
Certifications	Reach Approved, RoHS Approved, CE Approved
