UHF tag CER1207 for rfid hospital asset tracking
-

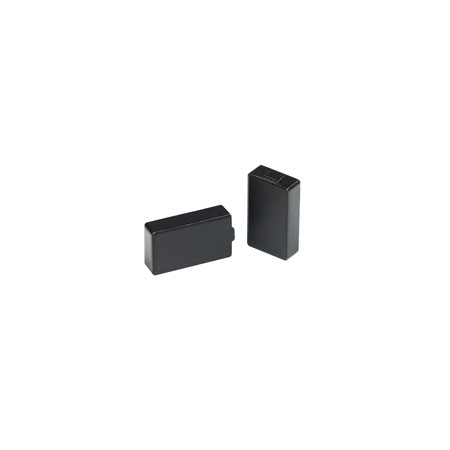

The UHF tag CER1207 has a hard ceramic exterior shield to protect them from exposure to extreme conditions. It can be mounted onto a variety of asset surfaces by either attaching it or embedding it. CER1207 is IP68-rated and has heat resistance, water resistance and chemical resistance. The size is 12x7mm, the thickness is 3mm, and the weight is 1.6g. When it is installed on the metal asset surface, the reading range can reach 2.3 meters, So CER1207 can be used as an UHF parking tag, it also can be used for rfid hospital asset tracking and more.
| Physical Specification: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3 |
| Memory | EPC 96bits, USER 512bits, TID64bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) : (Fix Reader) |
Up to 2.3m, on metal |
| Read Range(On Metal) : (Handheld Reader) |
Up to 1.3m, on metal |
| Warranty | 1 Year |
| Functional Specifications: |
| Size | 12.0x7.0mm |
| Thickness | 3.0mm |
| Material | Ceramic |
| Colour | Black |
| Mounting Methods | Adhesive |
| Weight | 1.6g |
| Environmental parameters: |
| IP Rating | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +85°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
