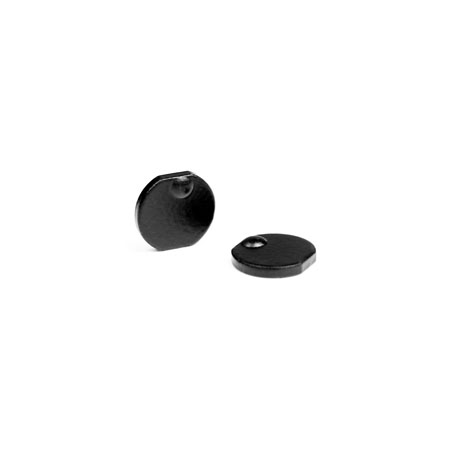

Ultra high frequency rfid tag CERD10 for rfid inventory tracking
-
CERD10 is a ceramic ultra high frequency rfid tag that has been specially designed with a hard-shell ceramic encasing that enables it to withstand high temperatures and high pressure ideally encountered in industrial environments. This ultra high frequency rfid tag can be used on different kinds of surfaces but are optimized for use on metal surfaces offering better read range performance. It can be used as RFID inventory tracking, with the protection grade of IP68, and offers resistance to water, dust and commonly used chemicals and acids found in industrial set-ups.
| Physical Specification: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3 |
| Memory | EPC 96bits, USER 512bits, TID64bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 1.3m - (US) 902-928 MHz, on metal |
| Up to 1.0m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 0.8m - (US) 902-928 MHz, on metal |
| Up to 0.6m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 Year |
| Functional Specifications: |
| Size | 10.0x9.35mm |
| Thickness | 1.5mm |
| Material | Ceramic |
| Colour | Black |
| Mounting Methods | Adhesive |
| Weight | 1.0g |
| Environmental parameters: |
| IP Rating | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +85°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
