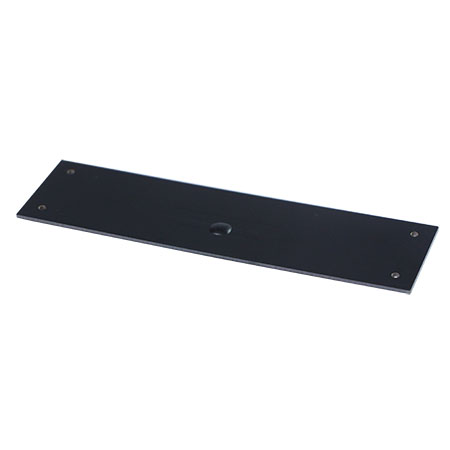

Ultra-thin RFID tag PCB9626 for non-metal surface
- The PCB9626 is an ultra-thin RFID tag with a thickness of only 1 mm, designed specifically for non-metal surfaces. Its slim profile allows easy integration onto a wide range of non-metallic objects, making it an ideal solution for efficient tracking and management of assets in industries such as logistics, retail, and inventory control.
| Physical Specification: |
| Size | 96x26mm |
| Thickness | 1.0mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 5.2g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | US 902-928MHz |
| IC Type | NXP Ucode 8 |
| Memory | EPC 128 bits , USER 512 bits, TID 96 bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 13m - (US) 902-928 MHz, on metal |
| Read Range(handheld reader) | Up to 6m - (US) 902-928 MHz, on metal |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
