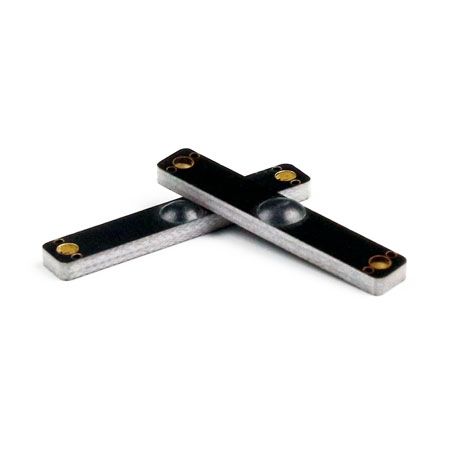

Passive UHF tags LT0530PCB for IOT asset tracking
- IoT asset tracking is using IoT connected devices to keep track of where assets are located. LT0530PCB is a Passive UHF tags designed for iot asset tracking, which can provides a read range of 3.1 meters. its Size 30x5mm, thickness 2.8mm with IC bump, weight 0.6g, Passive UHF tag LT0530PCB is ideal for applications that require exterior-mounted, low-cost, easily installed. LT0530PCB for IoT asset tracking has enormous potential. Whether you use trackers for agriculture, supply chain, construction, or mining; an asset tracking IoT solution can improve the overall efficiency.
| Physical Specification: |
| Size | 30x5mm, (Hole: D2mm*2) |
| Thickness | 2.0mm without IC bump, 2.8mm with IC bump |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 0.8g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | US 902-928MHz, EU 865-868MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 3.1m - (US) 902-928 MHz, on metal |
| Up to 2.8m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 2.1m - (US) 902-928 MHz, on metal |
| Up to 2.0m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
