UHF RFID Tag LT1025PCB for RFID Access control

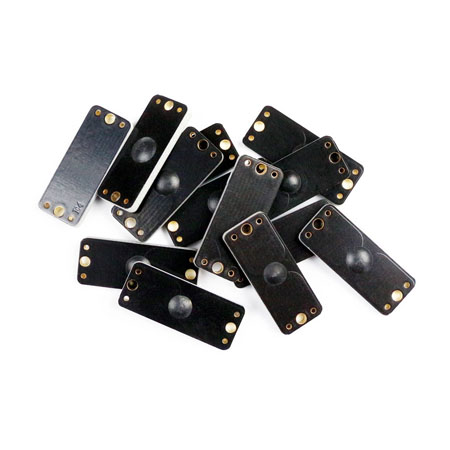

- LT1025PCB RFID tag can be used in RFID access control with a read distance of up to 3.25 meters (depends on reader), it can be affixed with a screw, a zip tie, come with adhesive backing or glued. Suitable for applications where an RFID tag on metal is needed. LT1025PCB is also suitable for use as a retails rfid tag, it is shape in size 25*10mm,thickness in 2.0mm ,with 2 holes in diameter 2mm, chip in Alien H3, Operating temperature: -40C ~ 100C. It can be used for applications like logistics, warehousing, IT and financial services where cost and versatility is at a premium.
| Physical Specification: |
| Size | 25mmx10mm (Hole:D2mmX2) |
| Thickness | 2.0mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 1.3g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 3.25m - (US) 902-928 MHz, on metal |
| Up to 3.0m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 2.5m - (US) 902-928 MHz, on metal |
| Up to 2.4m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
