Home > products > PCB On metal RFID tags > UHF mount On metal RFID Tags LT0618PCB

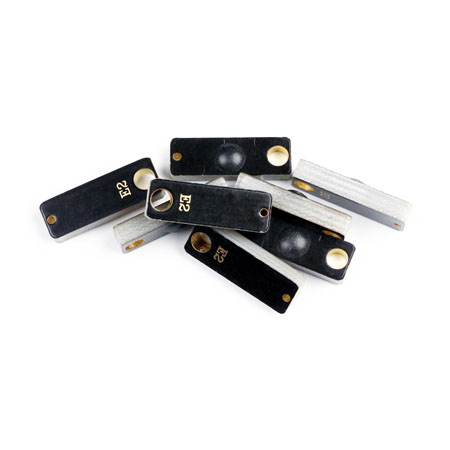

RFID reader Tags LT0618PCB for metal objects tracking
- Lanchitag prodvides a range of RFID reader Tag for Mount on metal assets in the manufacturing and logistics industries, LT0618PCB is a mount on metal rfid tags which has a read range up to 2.6 meters when mounted on metal surface. It is constructed with FR4/PCB materials and rated IP68 for high reliability and durability in all types of environments. The size is 18x6mm and thickness is 3mm without IC bump. it is compliant with ISO/IEC 18000-6 TypeC (EPC Gen2) standard, extremely compact and rugged.
| Physical Specification: |
| Size | 18x6mm |
| Thickness | 3.0mm without IC bump, 4.0mm with IC bump |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 1.2g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 2.6m - (US) 902-928 MHz, on metal |
| Up to 2.5m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 2.0m - (US) 902-928 MHz, on metal |
| Up to 1.8m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
