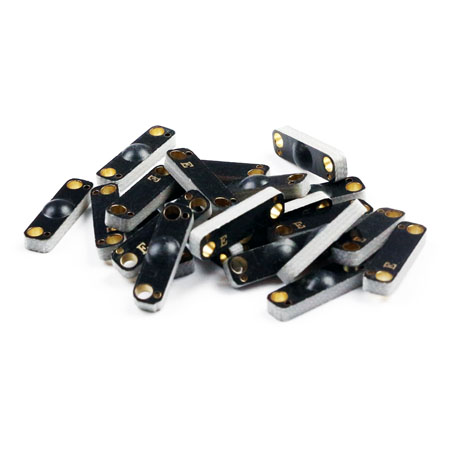

Track Computer & IT Asset by UHF Tags LT0415PCB
- LT0415PCB can be used as a computer asset tags in RFID IT asset tracking, it is exceptional performance on metal surfaces, and is built to withstand vibration, shock, chemical exposure and fluctuating temperatures. The size is 15x4mm and thickness is 2mm, when LT0415PCB mouned on metal surface of IT assets, the reading distance can up to 2.2 meters. At present, LT0415PCB RFID tag is widely used for tracking IT asset such as Computer, copiers, projectors, security cameras, computer hosts, switches, routers, hardware assets of large data centers, racks, UPS, minicomputers, etc.
| Physical Specification: |
| Size | 15x4mm, (Hole: D2mm*2) |
| Thickness | 2.0mm without IC bump, 2.8mm with IC bump |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive |
| Weight | 0.7g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 2.1m - (US) 902-928 MHz, on metal |
| Up to 2.2m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 1.3m - (US) 902-928 MHz, on metal |
| Up to 1.5m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
