Home > products > PCB On metal RFID tags > UHF RFID tag LT0713PCB in retail
RFID in retail can be used to prevent theft and track items

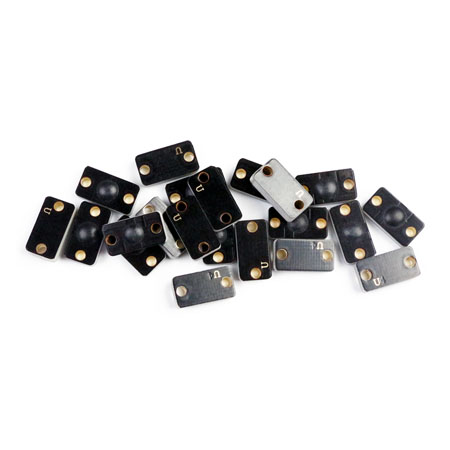

- When RFID in retail, LT0713PCB rfid tag is your best choice, it can be used to prevent theft and track items, RFID in retail is the key to keep the retail running efficiently, Managing your retail inventory with RFID makes everything easier and faster. LT0713PCB UHF tag is size in 13x7mm, compliant with EPC class 1 Gen 2 / ISO18000-6C protocols and offers a read range up to 2.5 meters on metal objects. In addition, As a rfid supplier, Lanchitag can provide a variety of customized RFID tags that would meet your specifics needs. When necessary, Lanchitag can develop new RFID tags that meet your unique material property or specific environmental requirements.
| Physical Specification: |
| Size | 13x7mm, (Hole: D2mm*2) |
| Thickness | 3.0mm without IC bump, 3.8mm with IC bump |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive |
| Weight | 0.7g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 2.5m - (US) 902-928 MHz, on metal |
| Up to 2.4m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 1.5m - (US) 902-928 MHz, on metal |
| Up to 1.4m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
