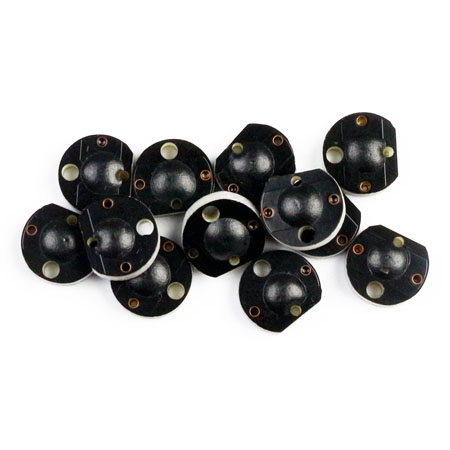

Diy rfid tag for your rfid equipment tracking
- At Lanchitag, You can diy RFID tag to meet your unique material property or specific environmental requirements. Our RFID Tag experts have a proven track record in solving your most challenging RFID problems and can assist in implementing a strategy that is right for you! As a service, Lanchitag also provide a variety of customized RFID tags that would meet your specifics needs, rfid equipment tracking and help to optimize your maintenance operations.
| Physical Specification: |
| Size | diameter 10mmxT3.0mm (Hole:D2mm) |
| Thickness | 3.0mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive |
| Weight | 0.5g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 1.5m - (US) 902-928 MHz, on metal |
| Up to 1.3m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 1.0m - (US) 902-928 MHz, on metal |
| Up to 0.95m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
